HDPE PN10 Pipe: Sizes, Specs & What You Need to Know Before Buying

What Does “PN10” Actually Mean?

Let’s start with the basics. “PN” stands for Pressure Nominale (or Nominal Pressure) – a European classification system that indicates the maximum working pressure a pipe can handle at 20°C, measured in bar.

So, a PN10 pipe is rated for 10 bar of continuous working pressure. That’s approximately 145 psi or 1.0 MPa.

To put that into perspective: the typical water pressure in Malaysian homes ranges from 2 to 4 bar. A PN10 pipe handles more than double that, giving you a comfortable safety margin for residential and commercial applications.

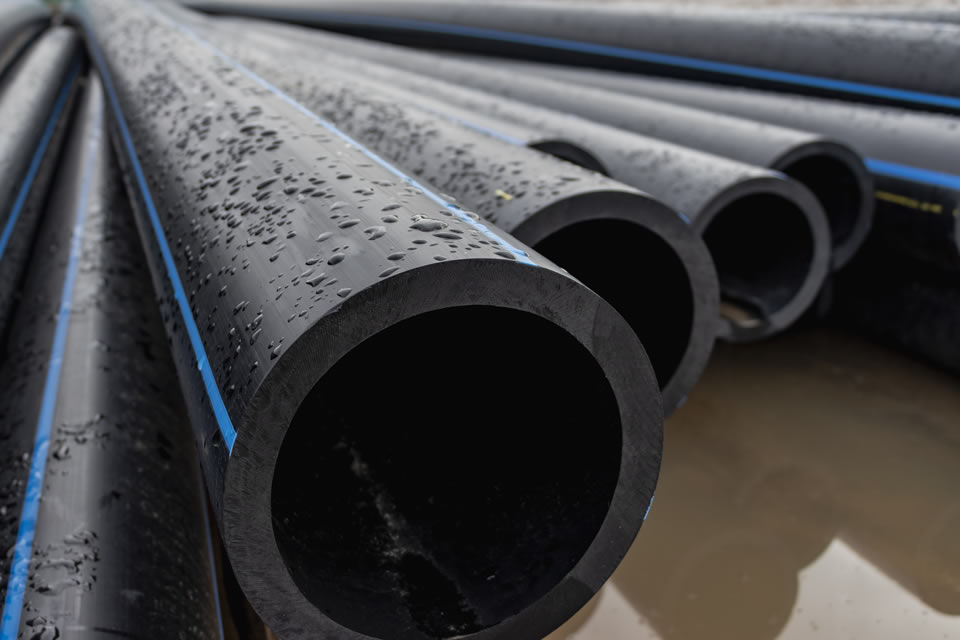

For HDPE pipes made from PE100 material (the current industry standard), PN10 corresponds to an SDR of 17. SDR stands for Standard Dimension Ratio – it’s the relationship between a pipe’s outside diameter and its wall thickness. A lower SDR means a thicker wall and higher pressure capacity, while a higher SDR means a thinner wall and lower pressure rating.

Here’s how the common pressure classes compare for PE100 material:

Source: PE100+ Association

As you can see, PN10 sits right in the practical middle ground – robust enough for water mains yet not over-engineered (and over-priced) for standard applications.

HDPE PN10 Pipe Size Chart (PE100, SDR 17)

One of the most common questions we receive at NY Hardware is: “What sizes does HDPE PN10 pipe come in?”

The answer – a wide range. Based on the ISO 4427 standard, here are the standard dimensions for PE100 PN10 pipe:

Source: Piping World & Engineering Toolbox

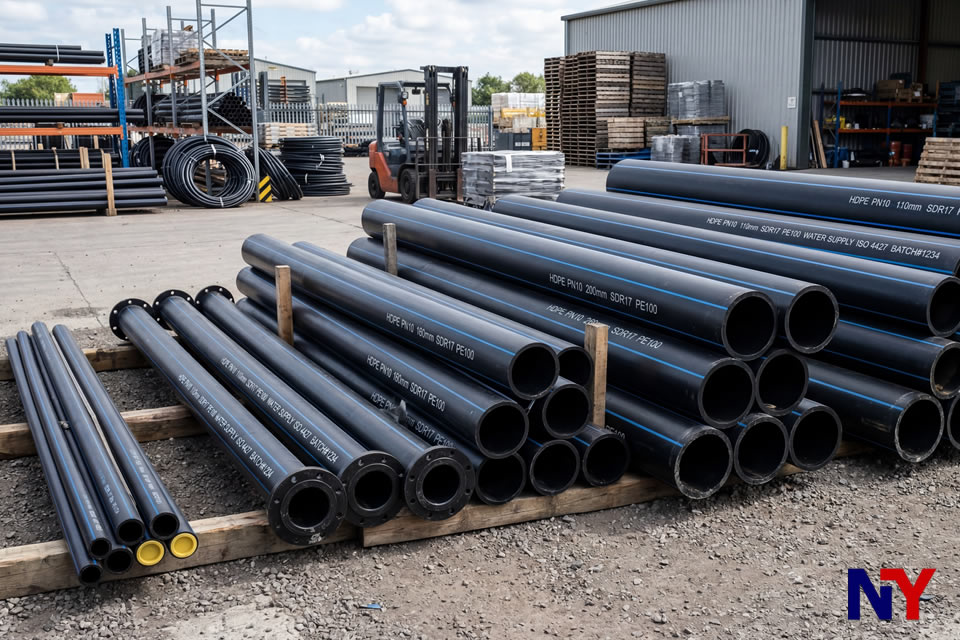

At NY Hardware, we stock these pipes in diameters ranging from 20mm to 315mm – covering everything from residential branch lines to large-diameter main supply pipes. All our pipes are SIRIM certified and sourced from leading manufacturers.

How to Choose the Right Size for Your Project

Picking the right pipe diameter isn’t just about fitting it into the ground. It directly affects your system’s flow rate, pressure drop, and overall efficiency.

Here’s a practical guide based on common Malaysian applications:

Residential Water Supply (20mm – 32mm)

For individual homes and small buildings, 20mm to 32mm pipes are the standard choice. A 25mm HDPE PN10 pipe (equivalent to ¾”) is commonly used for service connections from the main line to your house. For homes with multiple bathrooms or floors, 32mm (1”) provides better flow without significant cost increase.

Commercial Buildings & Small Developments (50mm – 90mm)

Medium-diameter pipes in the 50mm to 90mm range are suitable for commercial properties, shophouses, and small residential developments. These sizes handle higher demand while keeping velocity within the recommended range of 0.5 to 1.5 m/s to prevent water hammer.

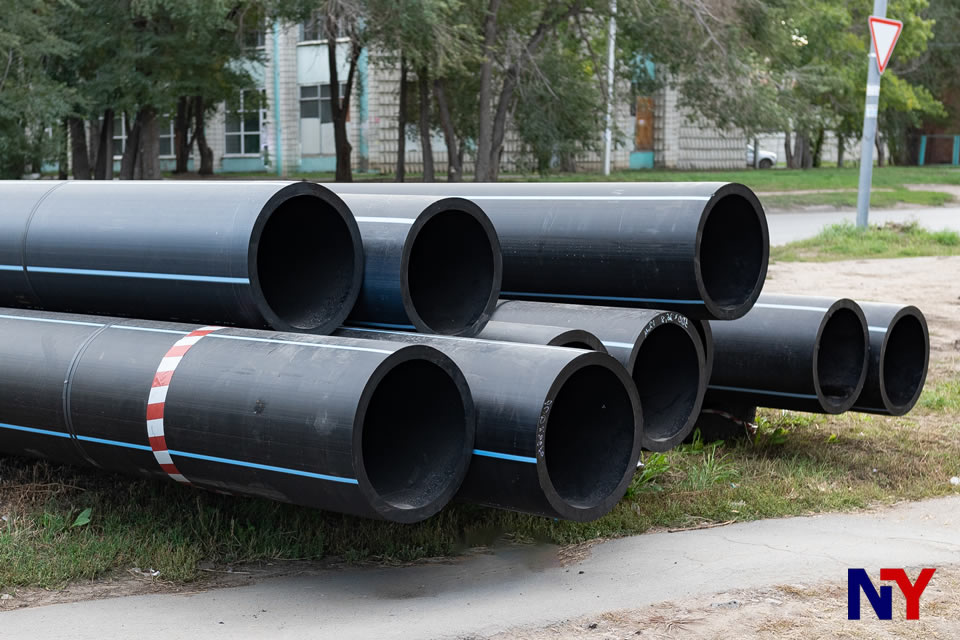

Municipal & Large Infrastructure (110mm – 315mm)

For municipal water mains, industrial estates, and large developments, you’ll need pipes in the 110mm to 315mm range. These are the sizes typically specified by water authorities such as SPAN and state-level water operators for trunk mains and distribution networks.

A useful rule of thumb: if you’re unsure between two sizes, go one size up. The marginal cost difference is small compared to the cost of tearing up a system because of insufficient flow – especially once the pipe is buried underground.

Why PN10 Is the Most Specified Rating in Malaysia

Walk into any plumbing supplier or look at tender specifications for water projects in Malaysia, and you’ll notice something: PN10 dominates.

There are solid reasons for this:

1. It Meets SPAN Requirements

The National Water Services Commission (SPAN) oversees water supply standards in Malaysia. For most potable water distribution systems, PN10 meets the required pressure specifications. Higher ratings like PN16 are typically reserved for pump discharge lines or high-pressure industrial applications.

2. Optimal Cost-to-Performance Ratio

PN10 pipes use less material than PN12.5 or PN16 (thinner walls due to the higher SDR of 17), which translates to lower cost per metre and lighter weight for easier handling. Yet they still provide more than adequate pressure resistance for standard water systems.

3. Proven Track Record

According to a study published by the PE100+ Association, PE100 pipes – the material grade used in modern PN10 polyethylene pipes – have a proven service life exceeding 100 years under standard operating conditions. Pipes produced as early as 1956 are still in testing and performing well after more than six decades of continuous use.

4. Addresses Malaysia’s NRW Crisis

Malaysia currently loses 37.1% of its treated water to leaks and pipe failures – that’s 7,195 million litres daily, worth over RM2 billion per year. Much of this is caused by aging metal and asbestos-cement pipes. This pipe’s leak-free fused joints and corrosion resistance make it a key solution in the national Pipe Replacement Programme, which targets 1,844km of aging pipes for replacement.
