HDPE Water Tank: What It Is, How It’s Made & Why It’s Malaysia’s Most Popular Choice
Quick Summary
An HDPE water tank is a storage container made from high-density polyethylene – a food-grade, BPA-free plastic that’s safe for drinking water. These tanks are manufactured through rotational moulding, which creates a seamless one-piece structure with no joints or welds. This article explains the material science, manufacturing process, and seven key advantages that make HDPE the dominant tank material in Malaysian homes.
If you’ve ever wondered what makes this material better than steel, concrete, or fiberglass for water storage – this guide has the answers.
HDPE stands for High-Density Polyethylene – but that technical name doesn’t tell you why nearly every new home in Malaysia installs one of these tanks on its roof.
The short answer: no other tank material combines lightweight construction, food-grade safety, corrosion resistance, and affordable pricing as effectively. According to IQS Directory, polyethylene tanks are the most widely used type of plastic water storage globally – and Malaysia is no exception.
But there’s more to the story than just “it’s cheap and lightweight.” Let’s look at what actually makes this material work so well for water storage.
What Is HDPE?
High-density polyethylene is a thermoplastic polymer made from petroleum. The “high-density” part refers to its molecular structure – the polymer chains are packed tightly together, giving the material greater strength and rigidity compared to low-density polyethylene (LDPE).
Key material properties that make it ideal for water tanks include a density of 0.93–0.97 g/cm³ (much lighter than steel or concrete), high tensile strength for impact resistance, chemical inertness (it doesn’t react with water or most chemicals), and a melting point of approximately 130°C (well above ambient Malaysian temperatures).
Critically, food-grade HDPE is approved by the FDA for contact with drinking water. It does not contain BPA (Bisphenol A) or phthalates – chemicals that are sometimes found in lower-quality plastics and have raised health concerns.

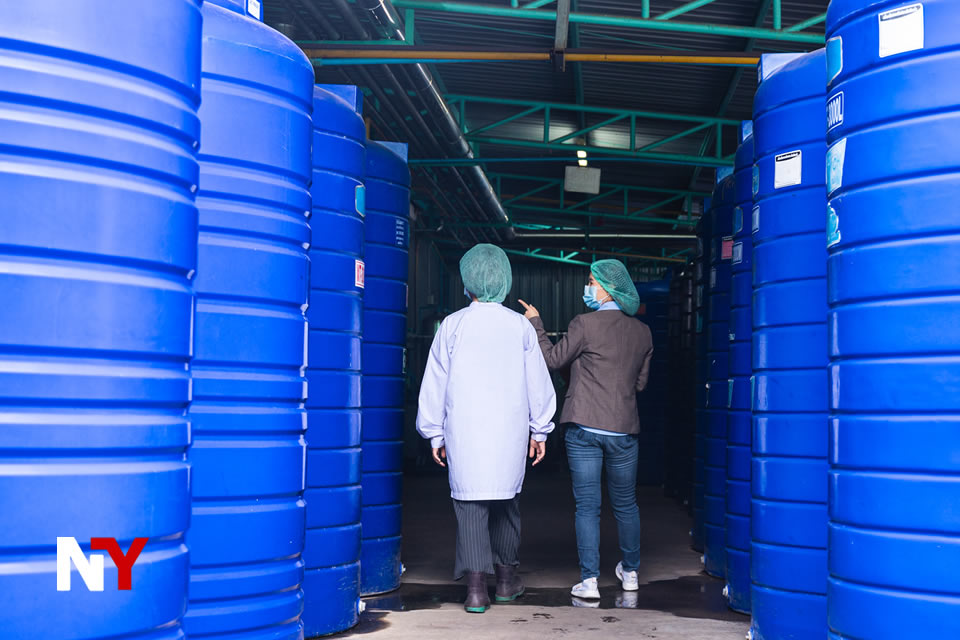

How HDPE Tanks Are Manufactured
The vast majority of polyethylene water tanks are produced through rotational moulding (rotomoulding). This process is specifically designed for creating large, hollow, seamless structures – exactly what a water tank needs to be.
The Rotomoulding Process
According to Poly Processing’s technical guide, the process works in four stages:
- Loading: Powdered HDPE resin is loaded into a hollow metal mould shaped like the finished tank.
- Heating & Rotation: The mould is heated while rotating slowly on two perpendicular axes. The melted resin coats the interior walls of the mould evenly.
- Cooling: The mould continues to rotate while cooling fans solidify the plastic. This ensures uniform wall thickness throughout the tank.
- Demoulding: Once cooled, the finished tank is removed from the mould – a complete, one-piece product with no seams.
This seamless, one-piece construction is what gives these tanks their reputation for reliability. As noted by SBM Gold, rotomoulded tanks produce stress-free products with uniform wall thickness – critical for long-term durability under the constant weight of stored water.
7 Key Advantages for Water Storage
Here are the seven reasons why this material dominates the Malaysian water tank market:
1. Lightweight
An empty polyethylene tank weighs a fraction of what a stainless steel or concrete equivalent would weigh. This makes rooftop installation practical without expensive structural reinforcement – a major consideration in Malaysian landed properties.
2. Corrosion-Proof
Unlike metal tanks, polyethylene cannot and will not rust. In Malaysia’s humid climate with frequent rain, this is a decisive advantage. There’s no need for anti-rust coatings, painting, or ongoing corrosion maintenance.
3. Food-Grade Safe
When manufactured from FDA-approved virgin resin, these tanks are certified safe for storing potable (drinking) water. The material doesn’t impart taste, odour, or chemicals into the water.
4. UV Resistant
Quality tanks are manufactured with built-in UV inhibitors that protect against Malaysia’s intense tropical sunlight. Without UV protection, exposed plastic would degrade and become brittle within a few years.
5. Seamless & Leak-Free
The rotomoulding process creates a tank with zero joints, seams, or weld points. This eliminates the most common failure mode in water tanks – leaking at connection points.
6. Impact Resistant
HDPE has natural flexibility that allows it to absorb impacts without cracking. Unlike rigid fiberglass (FRP) tanks that can shatter on impact, polyethylene flexes and returns to shape.
7. Affordable
Lower raw material costs and efficient rotomoulding production make polyethylene tanks the most cost-effective option for residential and light commercial water storage.
Certifications That Matter in Malaysia
Not every polyethylene tank on the market meets Malaysian safety standards. When buying a tank for potable water, look for these certifications:
- SIRIM QAS: Confirms the tank meets Malaysian Standards (MS 1225) for material quality and performance.
- IKRAM QA: An independent quality assurance certification that validates the tank’s structural integrity and food-grade compliance.
- SPAN approval: Suruhanjaya Perkhidmatan Air Negara (the national water services commission) approval is required for tanks connected to the public water supply system.
Reputable Malaysian brands like Kossan, Mui Fatt, and BNH maintain all three certifications. Buying uncertified tanks may save a few ringgit upfront, but you have no guarantee the material is truly food-grade or structurally sound.
Conclusion
An HDPE water tank isn’t just a plastic box on your roof – it’s an engineered product manufactured through a proven process, made from a material that’s been independently validated as safe for drinking water. Its combination of lightweight construction, zero corrosion risk, seamless design, and affordable pricing makes it the most practical choice for the vast majority of Malaysian properties.
At NY Hardware, we supply IKRAM and SIRIM certified HDPE tanks from leading Malaysian manufacturers. Our range covers 100 to 600 gallons in both round and square configurations.
Need help choosing the right size? Read our water tank sizes guide or compare tank materials in our poly vs stainless steel vs FRP comparison.
