DESCRIPTION

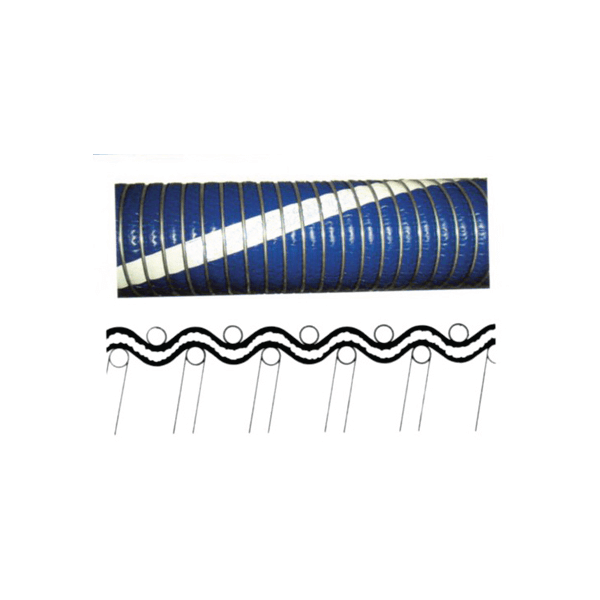

Composite hose made from polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. Inner and outer wires are galvanized mild steel.
CLASSIFICATION
Fuel and Oil Group 1 Hose.
COLOUR CODE
Blue outer cover with yellow or marked white stripe.
PRINCIPLE APPLICATIONS
Transoil is especially suitable for the suction and discharge transfer of petroleum products in in-plant application. It is an excellent hose for conveying tallow and high aromatic hydrocarbons.
MANUFACTURE
Complies with EN 13765 Type 2 and AS 2117 Type 3 Grade 1 and 2.
TEMPERATURE
Depending on the conveyant -30°C to 80°C.
STANDARD PRODUTION LENGTHS
30/40 meters
