How to Connect HDPE Pipe: 4 Joining Methods Every Contractor Should Know
Quick Summary
PE pipe can be joined using four main methods: butt fusion, electrofusion, socket fusion, and mechanical fittings. Each method has specific use cases depending on pipe size, location, and whether the joint needs to be permanent or removable. Butt fusion is the industry standard for large-diameter pipes, while electrofusion excels in tight spaces and repair work.
This guide explains each method step by step, when to use which, and the mistakes to avoid – so you get leak-free joints every time.
Here’s what makes polyethylene pipe fundamentally different from traditional piping materials: when you join two sections of PE pipe using heat fusion, the molecular structure of the plastic actually merges at the joint.
The result? A joint that’s as strong as – or stronger than – the pipe itself.
According to the ISCO Industries technical guide, a properly fused PE joint creates a permanent, monolithic connection where the melted surfaces mix and cool into a single piece. There are no gaskets to degrade, no threads to loosen, and no bolts to corrode.
This is one of the key reasons why these pipe systems achieve virtually zero leak rates – a critical advantage in a country like Malaysia where 37.1% of treated water is lost to leaks and pipe failures annually.
But not all joining methods are created equal. Let’s go through the four options and when each one makes sense.

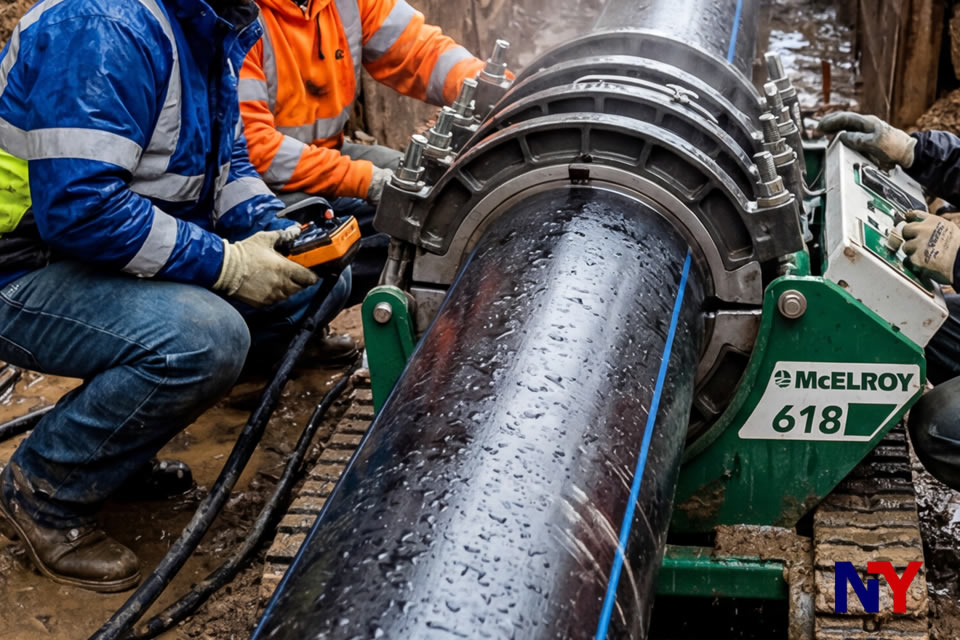

Method 1: Butt Fusion
Butt fusion is the most widely used method for joining PE pipe, especially for diameters 63mm and above. It’s the go-to technique for water mains, gas pipelines, and any application where long-term reliability is non-negotiable.
How It Works
The process involves heating the ends of two pipes (or a pipe and fitting) to a specific temperature, then pressing them together under controlled pressure. As the melted surfaces cool, the polyethylene molecules interlock and form a seamless bond.
According to the Plastics Pipe Institute, the standard butt fusion process involves these key steps:
- Step 1 – Clamping: Secure both pipe ends into the fusion machine clamps. Ensure proper alignment from top to bottom.
- Step 2 – Facing: Use the facing tool to shave both pipe ends clean, creating a flat, perpendicular surface of virgin HDPE. This removes any oxidised or contaminated material.
- Step 3 – Heating: Apply the heating plate (heated to 200–230°C for PE100 material) to both pipe ends simultaneously. Hold until the required melt bead forms around the circumference.
- Step 4 – Removal & Joining: Quickly remove the heater plate and press the two melted ends together under the specified fusion pressure.
- Step 5 – Cooling: Hold under pressure until the joint has cooled completely. The cooling time depends on pipe diameter and wall thickness.
When to Use It
Butt fusion is ideal for straight runs of pipe where you have enough working space for the fusion machine. It’s the most cost-effective method for large-diameter pipes (110mm and above) since the fusion equipment can handle the heavy sections. For projects like municipal water mains or industrial trunk lines, this is the standard.
Key Requirement
A trained operator and proper fusion equipment are essential. Incorrect temperature, pressure, or alignment will produce a weak joint. In Malaysia, reputable contractors are certified by bodies such as SIRIM for fusion welding competency.

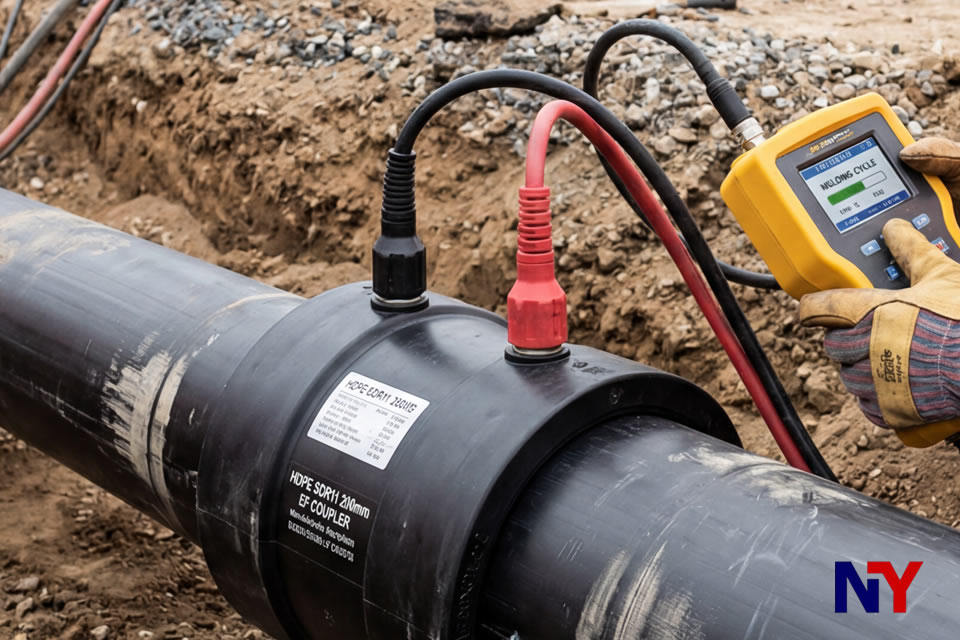

Method 2: Electrofusion
Electrofusion uses specialised fittings that have a built-in heating element (a resistance wire embedded in the fitting). When electric current is applied, the wire heats up and melts the plastic at the interface, creating a fused joint.
How It Works
- Step 1 – Preparation: Clean and scrape the outer surface of the pipe ends to remove any oxidised layer. This step is critical – contamination is the number one cause of electrofusion failure.
- Step 2 – Assembly: Insert the pipe ends into the electrofusion fitting (coupler, tee, elbow, etc.) and secure them with clamps to prevent movement during fusion.
- Step 3 – Fusion: Connect the electrofusion control unit to the fitting’s terminals. The machine reads the barcode on the fitting to automatically set the correct fusion time and voltage. Press start.
- Step 4 – Cooling: Allow the joint to cool for the time specified on the fitting. Do not disturb or move the pipe during this period.
When to Use It
Electrofusion shines in situations where butt fusion isn’t practical. According to Puhui Industry’s technical comparison, electrofusion is the preferred method for tight spaces and confined areas (e.g., valve chambers, trenches), repair work on existing pipelines, connecting tee branches to main lines, and smaller diameter pipes (20mm to 63mm).
The trade-off? Electrofusion fittings cost more than the equivalent butt fusion setup. But for the situations described above, they save significant time and labour costs.
Method 3: Socket Fusion
Socket fusion is the most common joining method for smaller diameter PE pipes – typically under 63mm. If you’ve ever seen a plumber joining green PPR pipes in a Malaysian house, the process is very similar.
How It Works
A handheld fusion tool with a male and female die (sized to your pipe diameter) heats the outside of the pipe end and the inside of the fitting simultaneously. Once both surfaces reach melting temperature, the pipe is quickly pushed into the fitting and held still until the joint cools.
When to Use It
Socket fusion is ideal for residential plumbing installations using 20mm to 50mm PE pipe. The equipment is portable, affordable, and doesn’t require a large workspace – making it perfect for indoor work, tight ceiling spaces, or on-site installations in Malaysian homes.
The key limitation: it’s not suitable for pipes above 110mm. For larger diameters, butt fusion or electrofusion are the only reliable options.
Method 4: Mechanical Fittings
Not every joint needs to be permanent. Mechanical fittings use compression, flanges, or locking mechanisms to connect PE pipes without any heat or fusion.
Common Types
- Compression fittings: Use a nut and ring to grip the pipe. Quick to install, no special tools needed. Best for temporary connections or low-pressure applications up to about 50mm.
- Flange connections: Used where HDPE needs to connect to valves, meters, or pipes of other materials (e.g., joining HDPE to a GI valve). Flanges provide a removable joint that can be disassembled for maintenance.
- Transition fittings: Specially designed to join HDPE pipe to metallic systems. One end is fusion-welded to the HDPE, while the other has a threaded or flanged connection for the metal pipe.
When to Use It
Mechanical fittings are best suited for connections to valves and equipment, temporary water supply lines, situations where the joint may need to be dismantled later, and transition points between HDPE and other pipe materials.
As Sino Pipe’s expert guide notes, while mechanical fittings are convenient and fast, they don’t create the same molecular bond as fusion methods. For permanent buried installations, fusion is always preferred.
Quick Comparison: Which Method Should You Use?
| Factor |
Butt Fusion |
Electrofusion |
Socket Fusion |
Mechanical |
| Best Pipe Size |
63mm – 630mm+ |
20mm – 315mm |
20mm – 110mm |
20mm – 315mm |
| Joint Strength |
Strongest |
Very strong |
Strong |
Good (not fused) |
| Equipment Cost |
High |
Medium |
Low |
None |
| Speed |
Moderate |
Fast |
Fast |
Fastest |
| Space Required |
Large |
Small |
Small |
Minimal |
| Permanent? |
Yes |
Yes |
Yes |
Removable |
| Best For |
Main lines, trunk mains |
Repairs, tight spaces |
Residential plumbing |
Valves, transitions |
Conclusion
The right joining method depends on your pipe size, working conditions, and whether the joint needs to be permanent. For most water supply projects in Malaysia, butt fusion is the standard for main lines, electrofusion handles the tricky spots, and mechanical fittings take care of transitions and valve connections.
Whatever method you choose, the quality of the joint comes down to two things: proper preparation and trained operators. A poorly fused joint is worse than no fusion at all – it gives a false sense of security while being the weak point in your entire system.
